The Local Area Network (LAN) are fundamental concepts in modern networking. Understanding how LANs function, their various architectures, and where they are employed is crucial for anyone working with or managing computer systems. This article delves into the intricacies of LANs, providing a comprehensive overview of their definition, the different architectural models, and the diverse applications where they play a vital role.
A Local Area Network (LAN) is a computer network that connects devices within a limited geographical area, such as a home, school, laboratory, office building, or a group of buildings in close proximity. LANs allow devices to share resources, such as files, printers, and internet access, facilitating communication and collaboration among users. They typically use technologies like Ethernet and Wi-Fi to establish connections and transfer data at high speeds.
Unlike Wide Area Networks (WANs) that span large distances, LANs are characterized by their localized nature, higher data transfer rates, and simpler management. The ownership and administration of a LAN are usually centralized, providing greater control over network security and performance.
Key Characteristics of a LAN
Several characteristics define a Local Area Network and differentiate it from other types of networks. These include:
- Limited Geographic Area: LANs operate within a confined space, which is a defining factor. This close proximity allows for high-speed data transmission and efficient resource sharing.
- High Data Transfer Rates: LANs typically offer significantly faster data transfer rates compared to WANs. This is due to the shorter distances involved and the use of technologies optimized for local networking.
- Centralized Administration: A LAN is usually managed by a single organization or individual, providing control over network security, resource allocation, and user access.
- Resource Sharing: One of the primary benefits of a LAN is the ability to share resources like printers, file servers, and internet connections among multiple users.
- Cost-Effectiveness: Setting up and maintaining a LAN is generally more cost-effective than establishing a WAN, as it requires less infrastructure and specialized equipment.
- Security Control: Due to the centralized administration, LANs offer greater control over security measures, allowing for the implementation of firewalls, access controls, and other security protocols.
- Low Latency: The short distances within a LAN result in low latency, which is crucial for applications that require real-time communication and data transfer.
The Purpose of a LAN
The purpose of a Local Area Network is multifaceted, serving several critical functions within an organization or home. Here are some of the main purposes:
- Resource Sharing: A primary purpose is to enable users to share resources, such as printers, scanners, and storage devices. This reduces costs and increases efficiency by eliminating the need for individual peripherals for each user.
- File Sharing: LANs facilitate easy and efficient file sharing among users. This is particularly important in office environments where collaboration on documents and projects is common.
- Internet Access Sharing: A LAN allows multiple devices to share a single internet connection. This is commonly seen in homes and offices where a router connects to an internet service provider (ISP) and distributes the connection to all devices on the network.
- Communication: LANs enable communication between users through email, instant messaging, and other network-based applications. This fosters collaboration and improves productivity.
- Centralized Data Storage: A LAN can provide centralized data storage on a file server, allowing users to access and back up their data in a secure and organized manner.
- Application Sharing: Software applications can be installed on a server and shared among users on the LAN. This simplifies software management and ensures that all users have access to the latest versions.
- Gaming: LANs are commonly used for multiplayer gaming, providing a low-latency environment for fast-paced and responsive gameplay.
LAN Architectures and Topologies
The architecture of a Local Area Network refers to the physical and logical arrangement of devices, cables, and protocols that make up the network. Different LAN architectures offer varying advantages and disadvantages in terms of cost, performance, and scalability. Understanding these architectures is essential for designing and managing effective LANs.
Network Topologies
A network topology describes the physical or logical arrangement of devices in a network. The choice of topology can significantly impact the network’s performance, reliability, and cost. Here are some common LAN topologies:
Bus Topology
In a bus topology, all devices are connected to a single cable, called the bus. Data is transmitted along the bus, and each device checks the destination address to determine if it should accept the data.
- Advantages: Simple to set up and requires less cabling than other topologies.
- Disadvantages: A break in the bus cable can disrupt the entire network. It is also difficult to troubleshoot, and performance degrades as more devices are added.
Ring Topology
In a ring topology, devices are connected in a circular fashion, with each device connected to its two neighbors. Data travels around the ring in one direction, and each device examines the data to see if it is the intended recipient.
- Advantages: Data collisions are minimized, and it can be relatively easy to manage.
- Disadvantages: A failure in one device or cable can disrupt the entire network. Adding or removing devices can be disruptive, and troubleshooting can be challenging.
Star Topology

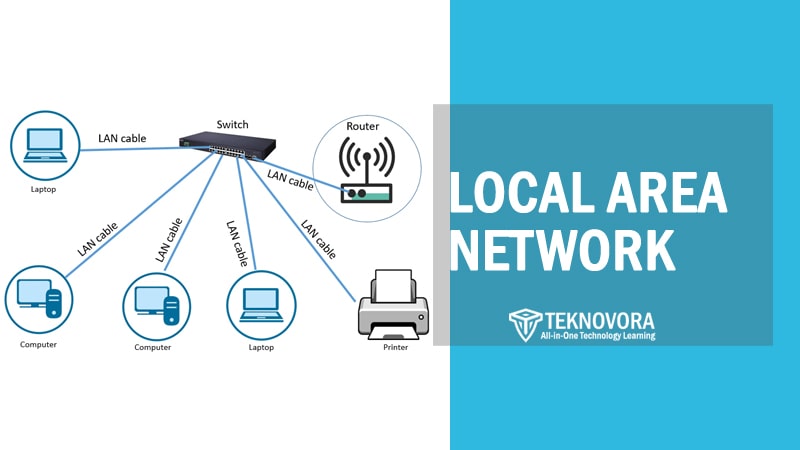

In a star topology, all devices are connected to a central hub or switch. Data is transmitted from a device to the hub, which then forwards it to the intended recipient.
- Advantages: Easy to install and manage. A failure in one device or cable does not affect the rest of the network. It is also easy to troubleshoot and add or remove devices.
- Disadvantages: Requires more cabling than bus or ring topologies. The central hub or switch is a single point of failure, although this is mitigated by the reliability of modern switches.
Mesh Topology
In a mesh topology, each device is connected to multiple other devices. This creates redundant paths for data to travel, increasing the network’s reliability and fault tolerance.
- Advantages: Highly reliable and fault-tolerant. Data can be transmitted along multiple paths, ensuring that the network remains operational even if some links fail.
- Disadvantages: Complex to set up and requires a significant amount of cabling. It is also more expensive than other topologies.
Tree Topology
A tree topology combines elements of bus and star topologies. It consists of multiple star networks connected to a central bus.
- Advantages: Scalable and flexible. It allows for the expansion of the network by adding new star networks to the bus.
- Disadvantages: A failure in the bus cable can disrupt the entire network. It is also more complex to manage than a simple star topology.
Wired vs. Wireless LANs
Local Area Networks can be broadly classified into wired and wireless LANs, each utilizing different technologies to connect devices.
Wired LANs
Wired LANs use physical cables, such as Ethernet cables, to connect devices to the network. Ethernet is the most common technology used in wired LANs, providing reliable and high-speed data transfer.
- Advantages:
Reliability: Wired connections are generally more reliable than wireless connections, as they are less susceptible to interference and signal degradation.
Speed: Ethernet cables can support very high data transfer rates, making them suitable for bandwidth-intensive applications.
Security: Wired connections are inherently more secure than wireless connections, as they require physical access to the cable.
- Disadvantages:
Mobility: Wired connections limit the mobility of devices, as they must be physically connected to the network.
Installation: Installing and managing Ethernet cables can be time-consuming and require specialized tools.
Wireless LANs (WLANs)
Wireless LANs use radio waves to transmit data between devices. Wi-Fi is the most common technology used in WLANs, providing convenient and flexible connectivity.
- Advantages:
Mobility: Wireless connections allow devices to move freely within the network’s coverage area.
Ease of Installation: Setting up a wireless network is generally easier than installing Ethernet cables.
Scalability: Wireless networks can easily accommodate new devices without requiring additional cabling.
- Disadvantages:
Security: Wireless networks are more vulnerable to security threats than wired networks, as radio waves can be intercepted.
Reliability: Wireless connections can be affected by interference from other devices, walls, and other obstructions.
Speed: Wireless data transfer rates can be lower than wired rates, especially in congested environments.
Network Devices in a LAN
Several network devices are essential for the proper functioning of a Local Area Network. These devices facilitate data transmission, manage network traffic, and provide security.
Network Interface Card (NIC)
A Network Interface Card (NIC) is a hardware component that allows a device to connect to a network. Each NIC has a unique Media Access Control (MAC) address, which is used to identify the device on the network.
Hubs
A hub is a simple networking device that connects multiple devices in a LAN. When a hub receives data from one device, it broadcasts the data to all other devices on the network.
- Disadvantages: Hubs are inefficient and can cause data collisions, as all devices share the same bandwidth. They are largely obsolete in modern networks.
Switches
A switch is a more intelligent networking device that connects multiple devices in a LAN. Unlike a hub, a switch learns the MAC addresses of the devices connected to it and forwards data only to the intended recipient.
- Advantages: Switches are more efficient than hubs and reduce the likelihood of data collisions. They are the standard networking device in modern LANs.
Routers
A router is a networking device that connects multiple networks together, such as a LAN to the internet. Routers use IP addresses to route data between networks.
- Advantages: Routers provide network segmentation, security, and the ability to connect to the internet.
Wireless Access Points (WAPs)
A Wireless Access Point (WAP) is a device that allows wireless devices to connect to a wired network. WAPs act as a bridge between the wireless and wired networks.
- Advantages: WAPs provide wireless connectivity to devices within a specific range.
Firewalls
A firewall is a security device that protects a network from unauthorized access. Firewalls can be implemented in hardware or software and can filter network traffic based on predefined rules.
- Advantages: Firewalls provide a critical layer of security for LANs, protecting them from external threats.
Protocols and Standards in LANs
Protocols and standards are essential for ensuring that devices in a Local Area Network can communicate effectively. These protocols define the rules and formats for data transmission, addressing, and error handling.
Ethernet (IEEE 802.3)
Ethernet is the most widely used networking protocol for wired LANs. It defines the physical and data link layers of the network, specifying how data is transmitted over cables.
- Key Features:
CSMA/CD (Carrier Sense Multiple Access with Collision Detection): A protocol that allows devices to detect and resolve data collisions.
MAC Addressing: Uses unique MAC addresses to identify devices on the network.
Frame Format: Defines the structure of data packets transmitted over the network.
Different Ethernet Standards: Include 10Base-T, 100Base-TX, Gigabit Ethernet, and 10 Gigabit Ethernet, each offering different data transfer rates.
Wi-Fi (IEEE 802.11)
Wi-Fi is the most common networking protocol for wireless LANs. It defines the physical and data link layers of the network, specifying how data is transmitted over radio waves.
- Key Features:
CSMA/CA (Carrier Sense Multiple Access with Collision Avoidance): A protocol that allows devices to avoid data collisions by listening for other transmissions before sending data.
SSID (Service Set Identifier): A unique name that identifies a wireless network.
Security Protocols: Include WEP, WPA, and WPA2, which provide encryption and authentication to protect wireless networks.
Different Wi-Fi Standards: Include 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, and 802.11ax (Wi-Fi 6), each offering different data transfer rates and features.
TCP/IP (Transmission Control Protocol/Internet Protocol)
TCP/IP is a suite of protocols that forms the foundation of the internet and most modern networks, including LANs. It provides reliable and connection-oriented communication between devices.
- Key Features:
IP Addressing: Uses IP addresses to identify devices on the network.
Routing: Enables data to be routed between different networks.
TCP: Provides reliable, connection-oriented data transmission.
UDP (User Datagram Protocol): Provides connectionless data transmission for applications that do not require guaranteed delivery.
Other Important Protocols
- DHCP (Dynamic Host Configuration Protocol): Automatically assigns IP addresses to devices on the network.
- DNS (Domain Name System): Translates domain names (e.g., www.example.com) into IP addresses.
- HTTP (Hypertext Transfer Protocol): Used for transmitting web pages and other content over the internet.
- HTTPS (Hypertext Transfer Protocol Secure): A secure version of HTTP that encrypts data transmitted between the client and server.
- FTP (File Transfer Protocol): Used for transferring files between devices on the network.
- SMTP (Simple Mail Transfer Protocol): Used for sending email messages.
- POP3 (Post Office Protocol version 3): Used for retrieving email messages.
- IMAP (Internet Message Access Protocol): Another protocol for retrieving email messages, offering more advanced features than POP3.
Real-World Applications of Local Area Networks
Local Area Networks are used in a wide variety of settings, providing essential connectivity and resource sharing. Understanding these real-world applications helps to illustrate the importance and versatility of LANs.
Home Networks
Home networks are a common application of LANs, allowing multiple devices to share an internet connection, files, and printers.
- Typical Setup: A home network typically consists of a router, which connects to an internet service provider (ISP), and several devices, such as computers, laptops, smartphones, tablets, and smart TVs.
- Functionality: Home networks allow users to:
Share an internet connection among multiple devices.
Share files and media between devices.
Print documents from any device on the network.
Stream media to smart TVs and other devices.
Control smart home devices, such as lights, thermostats, and security cameras.
- Security Considerations: Home networks should be secured with strong passwords and firewalls to protect against unauthorized access.
Office Networks
Office networks are essential for businesses of all sizes, providing connectivity and resource sharing among employees.
- Typical Setup: An office network typically consists of a server, switches, routers, and numerous desktop computers, laptops, and printers.
- Functionality: Office networks allow employees to:
Share files and documents on a central server.
Access shared printers and other peripherals.
Communicate with each other via email, instant messaging, and video conferencing.
Access the internet for research and communication.
Collaborate on projects and share resources.
- Security Considerations: Office networks require robust security measures, such as firewalls, intrusion detection systems, and access controls, to protect sensitive data and prevent unauthorized access.
School Networks
School networks provide students and teachers with access to educational resources, the internet, and collaborative tools.
- Typical Setup: A school network typically consists of servers, switches, routers, and numerous desktop computers, laptops, and tablets.
- Functionality: School networks allow students and teachers to:
Access educational software and online resources.
Conduct research and complete assignments.
Collaborate on projects and share resources.
Communicate with each other via email and online forums.
Access the internet for research and communication.
- Security Considerations: School networks must be carefully managed to protect students from inappropriate content and online threats. They also require security measures to protect student data and prevent unauthorized access.
Laboratory Networks
Laboratory networks are used in research and development environments to connect scientific instruments, data acquisition systems, and computers.
- Typical Setup: A laboratory network typically consists of servers, switches, routers, and specialized equipment, such as spectrometers, microscopes, and data loggers.
- Functionality: Laboratory networks allow researchers to:
Collect and analyze data from scientific instruments.
Share data and resources with colleagues.
Control scientific instruments remotely.
Process and analyze large datasets.
Collaborate on research projects.
- Security Considerations: Laboratory networks require strict security measures to protect sensitive data and prevent unauthorized access to scientific instruments and research findings.
Gaming Networks
Gaming networks are used for multiplayer gaming, providing a low-latency environment for fast-paced and responsive gameplay.
- Typical Setup: A gaming network typically consists of a router, switches, and gaming consoles or computers.
- Functionality: Gaming networks allow players to:
Connect to online gaming servers.
Play multiplayer games with friends and other players.
Communicate with each other via voice chat and text messaging.
Stream gameplay and share content online.
- Performance Considerations: Gaming networks require low latency and high bandwidth to ensure smooth and responsive gameplay.
Industrial Networks
Industrial networks are used in manufacturing and industrial environments to connect and control automated systems, robots, and other equipment.
- Typical Setup: An industrial network typically consists of servers, switches, routers, and specialized industrial equipment, such as programmable logic controllers (PLCs), sensors, and actuators.
- Functionality: Industrial networks allow manufacturers to:
Control and monitor automated systems.
Collect data from sensors and other devices.
Optimize production processes.
Improve efficiency and reduce costs.
Remotely manage and troubleshoot equipment.
- Security Considerations: Industrial networks require robust security measures to protect against cyberattacks and prevent disruptions to critical infrastructure.
Advantages and Disadvantages of LANs
Local Area Networks offer numerous advantages but also have some limitations. A balanced understanding of these pros and cons is crucial for making informed decisions about network design and implementation.
Advantages of LANs
- Resource Sharing: LANs enable users to share resources such as printers, scanners, and internet connections, reducing costs and increasing efficiency.
- File Sharing: LANs facilitate easy and efficient file sharing among users, enhancing collaboration and productivity.
- Centralized Management: LANs allow for centralized management of network resources, security policies, and user accounts.
- Cost-Effective: Setting up and maintaining a LAN is generally more cost-effective than other network types, especially in localized environments.
- Increased Productivity: LANs improve communication and collaboration, leading to increased productivity among users.
- Enhanced Security: LANs offer greater control over security measures, allowing for the implementation of firewalls, access controls, and other security protocols.
- Fast Data Transfer Rates: LANs provide high-speed data transfer rates, making them suitable for bandwidth-intensive applications.
- Low Latency: The short distances within a LAN result in low latency, which is crucial for real-time communication and data transfer.
Disadvantages of LANs
- Limited Geographic Area: LANs are limited to a small geographic area, making them unsuitable for connecting devices across large distances.
- Initial Setup Costs: Setting up a LAN can require significant initial investment in hardware, software, and cabling.
- Maintenance Requirements: LANs require ongoing maintenance and management to ensure optimal performance and security.
- Security Risks: LANs can be vulnerable to security threats, such as viruses, malware, and unauthorized access.
- Dependence on Centralized Resources: If a central server or network device fails, it can disrupt the entire LAN.
- Privacy Concerns: File sharing and centralized data storage can raise privacy concerns, especially in environments where sensitive information is handled.
- Potential for Congestion: As more devices are added to a LAN, it can become congested, leading to reduced performance.
- Technical Expertise Required: Managing and troubleshooting a LAN requires technical expertise, which may necessitate hiring qualified IT personnel.
Securing Your Local Area Network
Securing a Local Area Network is paramount to protect sensitive data, prevent unauthorized access, and maintain network integrity. Implementing a comprehensive security strategy involves a combination of hardware, software, and best practices.
Firewall Protection
A firewall acts as a barrier between the LAN and external networks, such as the internet, filtering incoming and outgoing traffic based on predefined rules.
- Hardware Firewalls: Dedicated hardware devices that provide robust protection for the entire network.
- Software Firewalls: Software applications installed on individual devices that protect against local threats.
Strong Passwords and Authentication
Using strong passwords and multi-factor authentication (MFA) can prevent unauthorized access to network resources.
- Password Policies: Enforce strong password policies that require users to create complex passwords and change them regularly.
- Multi-Factor Authentication: Implement MFA to add an extra layer of security, requiring users to verify their identity through multiple methods, such as a password and a code sent to their mobile device.
Network Segmentation
Segmenting the LAN into smaller, isolated networks can limit the impact of a security breach and prevent attackers from accessing sensitive data.
- VLANs (Virtual LANs): Logically divide the network into separate VLANs, isolating traffic and resources.
- Access Control Lists (ACLs): Use ACLs to control traffic flow between different segments of the network.
Regular Software Updates and Patch Management
Keeping software and firmware up to date is essential for patching security vulnerabilities and preventing exploits.
- Automated Updates: Enable automated updates for operating systems, applications, and network devices.
- Patch Management: Implement a patch management system to track and deploy security patches in a timely manner.
Intrusion Detection and Prevention Systems (IDS/IPS)
IDS/IPS monitor network traffic for suspicious activity and automatically take action to block or mitigate threats.
- Network-Based IDS/IPS: Monitor traffic on the entire network for malicious activity.
- Host-Based IDS/IPS: Monitor activity on individual devices for suspicious behavior.
Wireless Security Protocols
Using secure wireless protocols, such as WPA2 or WPA3, can protect wireless networks from unauthorized access.
- WPA2/WPA3 Encryption: Enable WPA2 or WPA3 encryption to encrypt wireless traffic and prevent eavesdropping.
- MAC Address Filtering: Restrict access to the wireless network based on MAC addresses.
Employee Training and Awareness
Educating employees about security threats and best practices can help prevent phishing attacks, social engineering, and other security breaches.
- Security Awareness Training: Conduct regular security awareness training to educate employees about common threats and how to protect themselves.
- Phishing Simulations: Run phishing simulations to test employees’ awareness and identify areas for improvement.
Regular Security Audits and Vulnerability Assessments
Conducting regular security audits and vulnerability assessments can help identify weaknesses in the network and prioritize remediation efforts.
- Vulnerability Scanning: Use vulnerability scanners to identify known vulnerabilities in software and hardware.
- Penetration Testing: Hire ethical hackers to simulate real-world attacks and identify security weaknesses.
By implementing these security measures, organizations and individuals can significantly enhance the security of their Local Area Networks and protect against a wide range of threats.
The Future of LAN Technology
The future of Local Area Network technology is shaped by evolving trends, emerging technologies, and changing user needs. Several key developments are poised to transform LANs in the coming years.
Increased Adoption of Wireless Technologies
Wi-Fi 6 and future Wi-Fi standards will continue to drive the adoption of wireless technologies in LANs, offering increased speed, capacity, and reliability.
- Wi-Fi 6E: Extends Wi-Fi 6 into the 6 GHz band, providing additional spectrum and reducing congestion.
- Enhanced Security: Future Wi-Fi standards will incorporate enhanced security protocols to protect against evolving threats.
Software-Defined Networking (SDN)
SDN centralizes network control and management, allowing for more flexible and programmable LANs.
- Centralized Control: SDN enables administrators to manage network resources from a central location.
- Automation: SDN automates network configuration and management tasks, reducing manual effort and improving efficiency.
Network Virtualization
Network virtualization allows for the creation of virtual networks on top of physical infrastructure, providing greater flexibility and scalability.
- Virtual LANs (VLANs): VLANs enable the creation of logical networks that are isolated from each other, improving security and performance.
- Overlay Networks: Overlay networks create virtual networks that run on top of existing physical networks, allowing for greater flexibility and control.
Edge Computing
Edge computing brings processing and storage closer to the edge of the network, reducing latency and improving performance for applications that require real-time data processing.
- Local Data Processing: Edge computing enables data to be processed locally, reducing the need to transmit data to a central server.
- Improved Performance: Edge computing improves performance for applications such as IoT, video streaming, and augmented reality.
Convergence of LAN and WAN
The lines between LANs and WANs are blurring as organizations increasingly rely on cloud-based services and remote access.
- SD-WAN (Software-Defined WAN): SD-WAN optimizes network performance and connectivity across geographically dispersed locations.
- Secure Access Service Edge (SASE): SASE combines network security and WAN capabilities into a single cloud-delivered platform.
Enhanced Security Measures
Security will continue to be a top priority for LANs, with a focus on proactive threat detection, advanced authentication, and automated response.
- AI-Powered Security: Artificial intelligence (AI) and machine learning (ML) are being used to detect and respond to security threats in real-time.
- Zero Trust Security: Zero trust security assumes that no user or device is trusted by default and requires continuous authentication and authorization.
By embracing these emerging technologies and trends, organizations can build more flexible, scalable, and secure Local Area Networks that are ready to meet the challenges of the future. Understanding the direction of LAN technology is crucial for staying ahead in a rapidly evolving technological landscape.
